Product Features

• Edge-to-edge cooktop
 A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

• Extra-large integrated non-stick griddle
 Cook up to six grilled cheeses at once on the industry’s largest integrated griddle

• 15,000 BTU Power Boil burner
 Delivers high heat for fast boiling

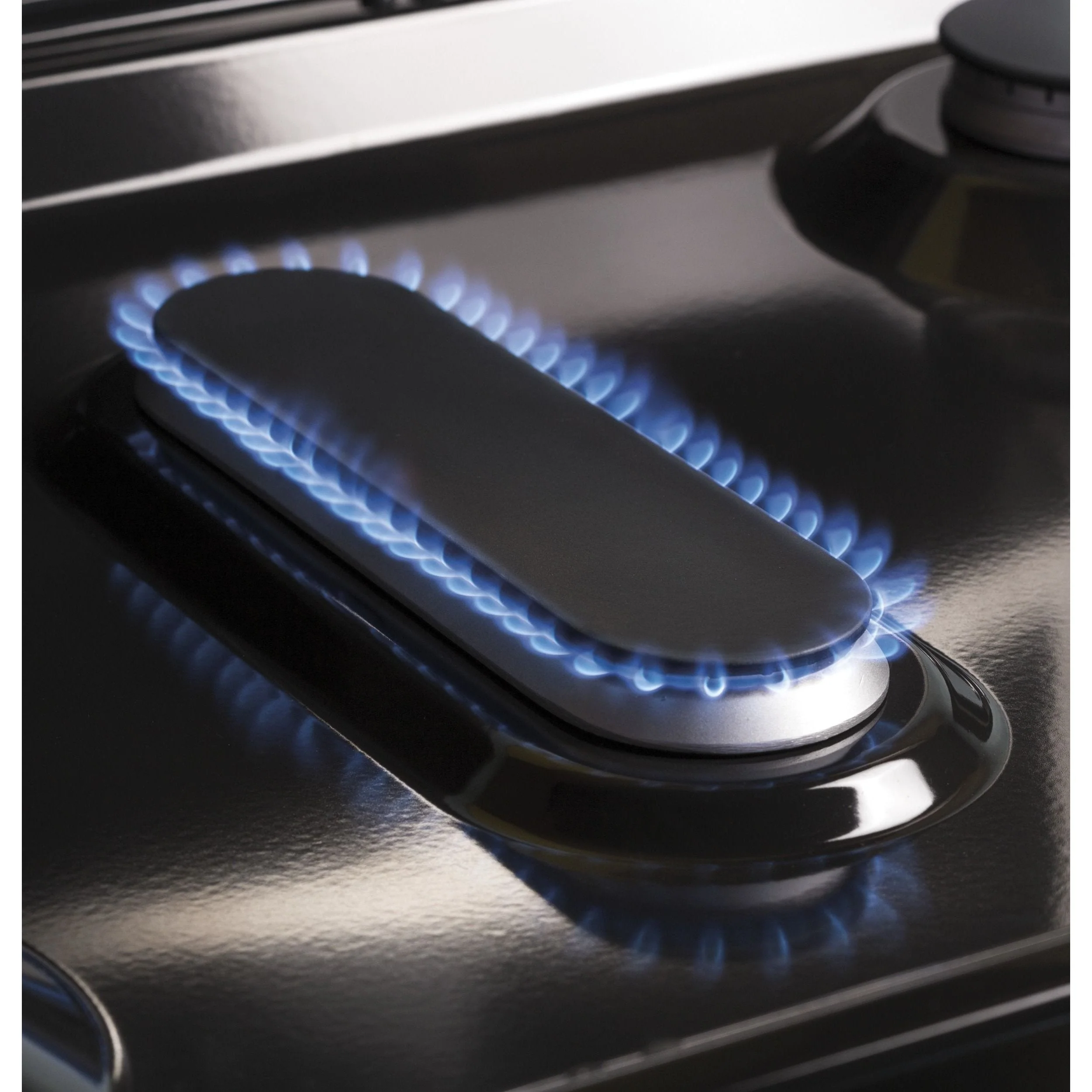

• Center oval burner
 Large oval fifth burner is ideal for griddle cooking

• Steam clean
 Save time and effort by steam-cleaning the oven after cooking. No special water, kits or extra steps required.

• Precise Simmer burner
 Delicate foods don’t burn with low, even heat

• Heavy duty, dishwasher-safe grates
 Easily and safely clean grates in the dishwasher

• 5.0 cu. ft. oven capacity
 Cook more dishes at once

• Sealed cooktop burners
 Contains spills and make cleaning quick and easy

• Deep-recessed cooktop
 Contains spills for quick and easy cleaning

Specs & Details

Other Features

• Burner - Right Rear - 12,000 BTU

• Burner - Center - 10,000 BTU Oval

• Cooktop Burner Grate Features - Continuous Grates

• Cooktop Burner Grate Material - Heavy Cast Iron

• Control Type - Electronic Touch

• Oven Control Features - Audible Preheat Signal, Auto Oven Shut-Off, Certified Sabbath Mode, Delay Bake Option, Electronic Clock and Timer, Hi / Low Broil, Oven Control Lock Capability

• Control Location - Front

• Cooking Technology - Traditional

• Product Type - Free-Standing Single Oven

• Configuration - Range with Broiler Drawer



Capacity

• Total Capacity (cubic feet) - 5.0 cu ft

Appearance

• Color Appearance - Black Slate
• Control Knobs - Black Stainless
• Cooktop Burner Grate Color - Matte Black
• Handle - Black Stainless, Designer Style
• Oven Door Features - Big View Oven Window

Weights & Dimentions

• Depth Without Handle - 26.25 in
• Approximate Shipping Weight - 172.0 lb
• Cabinet Width - 30.0 in
• Oven Interior Dimensions (W x H x D) (in.) - 24 x 19 x 19

Power / Ratings

• Bake/Broiler BTU Rating - LP (000's BTU's) - 16.0 Bake / 16.0 Broiler
• Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) - 18.0 Bake / 18.0 Broiler
• Top Burner BTU Rating - LP (000's BTU's) - (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0
• Top Burner BTU Rating - Nat. Gas (000's BTU's) - (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0
• Volts/Hertz/Amps - 120v; 60Hz; 15A

Claims & Certifications

• California Prop 65
• Star-K

Accessories

• Griddle - Integrated Non-Stick
• Center Grate - Optional - JXGRATE1
• LP Conversion Kit - Included

Warranty

• Parts Warranty - Limited 1-year entire appliance
• Labor Warranty - Limited 1-year entire appliance
• Warranty Notes - See written warranty for full details
